Drawing 2D plots from FCS data in R with Bioconductor, base graphics and ggplot2

So I have spend the last few days working out how to generate nice 2D plots using flow cytometry data.

It's been interesting.

Here is the code and some nice output.


#load flowCore which allows the import of FCS files.
source("http://bioconductor.org/biocLite.R")
biocLite("flowCore")
library(flowCore)

# import the data
ntl<-read.FCS("A01 NTL.fcs", alter.names = TRUE)
n <- exprs(ntl)  # converts the data into a matrix
cd40L<-read.FCS("A02 CD40L.fcs", alter.names = TRUE)
c <- exprs(cd40L) # converts the data into a matrix

#BASE GRAPHICS
# Use base graphics of R to display FSC/SSC dot plots.

par(mfrow=c(1,2)) #allows to plots to be placed side to side

plot(n[,1], n[,2],
     pch = ".",
     ylim=c(0,1000000),
     xlim=c(0,10000000),
     xlab="FSC-A",
     ylab="SSC-A",
     main="NTL") # this works

plot(c[,1], c[,2],
     pch = ".",
     ylim=c(0,1000000),
     xlim=c(0,10000000),
     xlab="FSC-A",
     ylab="SSC-A",
     main="CD40L") # this works

This is the plot produced:

#GGPLOT2
#Can also use ggplot2 to draw dot plots
library(ggplot2)

#seems ggplot only likes data frames
ndf <- as.data.frame(n)
cdf <- as.data.frame(c)

#make the plotting objects using ggplot
p1<- ggplot(ndf, aes(x=FSC.A, y=SSC.A)) +
  geom_point(shape=".", colour="red") +
  ylim(0, 500000) + xlim(0,5000000) +
  ggtitle("Samp 001, NTL & IL4")

p2<- ggplot(cdf, aes(x=FSC.A, y=SSC.A)) +
  geom_point(shape=".", colour="red") +
  ylim(0, 500000) + xlim(0,5000000) +
  ggtitle("Samp 001, CD40L & IL4")

multiplot(p1,p2, cols=2)

This is the output

# 2D density plots
#with contour lines
p1 <- ggplot(ndf, aes(x=FSC.A, y=SSC.A)) +
  geom_point(shape=".", colour="red") +
  ylim(0, 500000) + xlim(0,5000000) +
  ggtitle("Samp 001, NTL & IL4") +
  geom_density2d(colour="black", bins=5)

p2 <- ggplot(cdf, aes(x=FSC.A, y=SSC.A)) +
  geom_point(shape=".", colour="red") +
  ylim(0, 500000) + xlim(0,5000000) +
  ggtitle("Samp 001, NTL & IL4") +
  geom_density2d(colour="black", bins=5)

multiplot(p1,p2, cols=2)

#with colour indicating density
ggplot(ndf, aes(x=FSC.A, y=SSC.A)) +
  geom_point(shape=".", colour="red") +
  ylim(0, 500000) + xlim(0,5000000) +
  ggtitle("Samp 001, NTL & IL4") +
  stat_density2d(aes(alpha=..density..), geom="raster", contour = FALSE)

Some very useful help from here:
http://www.talkstats.com/showthread.php/52675-ggplot2-contour-chart-plotting-concentrations/page2

#with more colours indicating density
colfunc <- colorRampPalette(c("white", "lightblue", "green", "yellow", "red"))
ggplot(ndf, aes(x=FSC.A, y=SSC.A)) +
  ylim(0, 500000) + xlim(0,5000000) +
  stat_density2d(geom="tile", aes(fill = ..density..), contour = FALSE) +
  scale_fill_gradientn(colours=colfunc(400)) +
  geom_density2d(colour="black", bins=5)

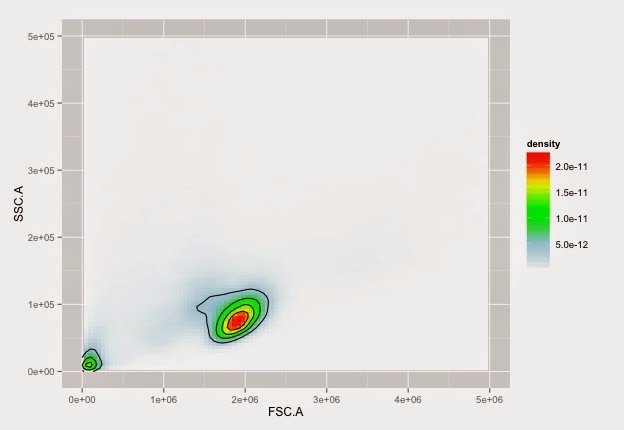

Cells on NTL with nice colours

ggplot(cdf, aes(x=FSC.A, y=SSC.A)) +
  ylim(0, 500000) + xlim(0,5000000) +
  stat_density2d(geom="tile", aes(fill = ..density..), contour = FALSE) +
  scale_fill_gradientn(colours=colfunc(400)) +
  geom_density2d(colour="black", bins=5)

Cells on CD40L with nice colours

#function to allow more than one ggplot on a page
multiplot <- function(..., plotlist=NULL, file, cols=1, layout=NULL) {
  library(grid)

  # Make a list from the ... arguments and plotlist
  plots <- c(list(...), plotlist)

  numPlots = length(plots)

  # If layout is NULL, then use 'cols' to determine layout
  if (is.null(layout)) {
    # Make the panel
    # ncol: Number of columns of plots
    # nrow: Number of rows needed, calculated from # of cols
    layout <- matrix(seq(1, cols * ceiling(numPlots/cols)),
                     ncol = cols, nrow = ceiling(numPlots/cols))
  }

  if (numPlots==1) {
    print(plots[[1]])

  } else {
    # Set up the page
    grid.newpage()
    pushViewport(viewport(layout = grid.layout(nrow(layout), ncol(layout))))

    # Make each plot, in the correct location
    for (i in 1:numPlots) {
      # Get the i,j matrix positions of the regions that contain this subplot
      matchidx <- as.data.frame(which(layout == i, arr.ind = TRUE))

      print(plots[[i]], vp = viewport(layout.pos.row = matchidx$row,
                                      layout.pos.col = matchidx$col))
    }
  }
}

Clearing the environment in R

from here: http://www.statisticsblog.com/2010/04/r-clean-up-your-environment/

USE WITH CAUTION

rm(list = ls())

Learning how to graph flow cytometry data in R.... day one

I found this very interesting tutorial here:
http://bioinformatics.ca//files/public/Flow_2013_Module2.mp4

It goes through some of the key concepts to analyse flow cytometry data in R.

These include:

• vectors
• binding two vectors into a matrix
• lists
• mylist <- list(“first” = x, “second” = y)
• x and y are vectors that were defined earlier.
• Thus the list here contains vectors.
• INTERESTING AND IMPORTANT
• defining within a list uses double square brackets:
• mylist[[1]]
• can call a part of a list by it’s name!
• mylist[[“first”]]
• access by name rather than by index number can be very useful if multiple names are the same or if index numbers change.
• length(mylist)
• subsetting by index or name.
• Fundamental to R
• variables
• functions
• syntax of commands
• round brackets for functions; square brackets for subsetting
• data structures
• nest functions within functions - innermost brackets first.
• Google the error messages!
• warning messages rather than errors

Comment: I did this with Jo a little bit and made some notes but I don’t know where they are.

functions that are useful for subsetting for flow cytometry data:

• which - returns the index which adhere to the key concepts.
• intersect
• union

Visualising flow cytometry data

• plot(density(a))

Key package - flowCore - it's a Bioconductor Package

Installing flowCore:
> source("http://bioconductor.org/biocLite.R")

> biocLite("flowCore")

When we import an FCS file into R using read.FCS, it creates a special kind of object called a flowFrame. This seems to act like a kind of data frame with lots of metadata and the like.

The data from this flowFrame can be converted into a matrix which can be useful.

Another key package - flowViz

Installing flowViz:

> biocLite("flowViz")

this allows plotting of data but is quite slow!

Using "@" symbol to explore an object.

I am having some problems with flowVis. It's giving an "Error: subset out of bounds" message.

If I extract the data then I can plot the data nicely:

E <- exprs(data)

plot(E[,1], E[,2],

     pch = ".",

     ylim=c(0,1000000),

     xlab="FSC-A",

     ylab="SSC-A",

     main="Forward Scatter vs Side Scatter") # this works

This gives a graph like this:

IT'S SLOW BUT IT IS PROGRESS...

with and by in R

These are important commands but not really commands that I understand in detail.

http://www.statmethods.net/stats/withby.html

Getting help....

help() OR ?
e.g. help(hist) OR ?hist

help.search() OR ??

demo()
   Not all functions have demos but some do!
e.g. demo(graphics)


vignette()
    Usually points at a PDF.

From the course on pluralsight

Basic R commands again

This link is useful:

http://www.calvin.edu/~scofield/courses/m143/materials/RcmdsFromClass.pdf
